PVC Coated Ferrule Type Stainless Steel Cable Mesh 7x7

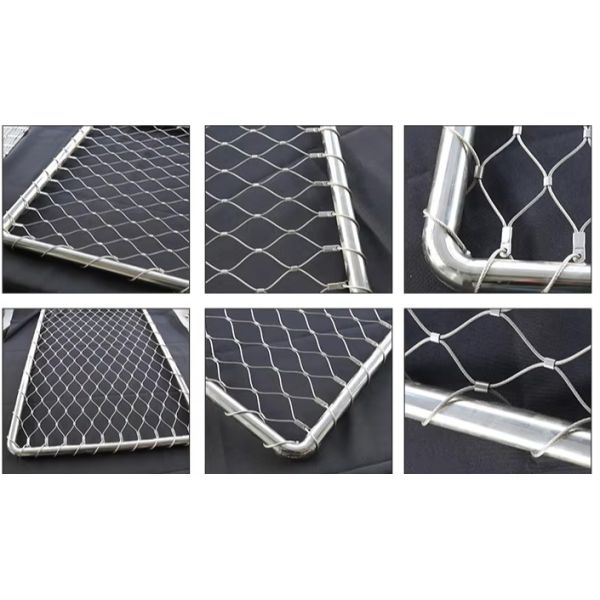

PVC coated ferrule type wire rope net combines stainless steel cables with durable ferrules made of matching grade stainless steel. This construction offers excellent physical properties while maintaining a clean, professional appearance.

• Material options: Stainless steel 304, 304L, 316, 316L
• Ferrule material: Tinned copper, nickel plated copper, or stainless steel
• Surface treatment: Silver or black oxide finish

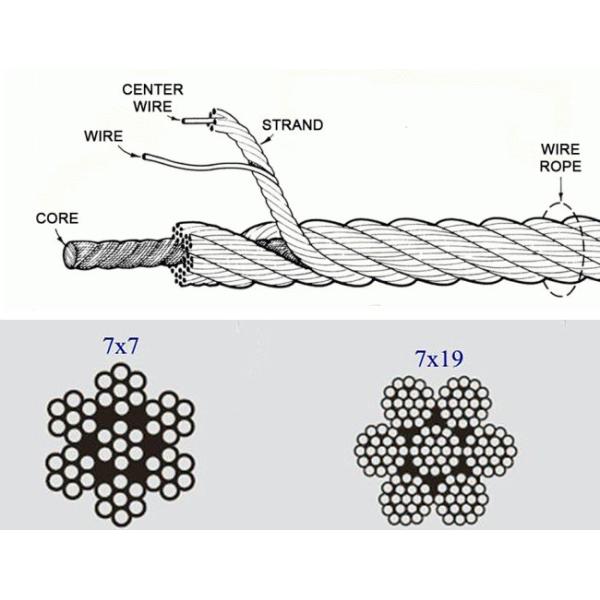

• Wire cable construction: 7×7 or 7×19
• Cable diameter range: 1.0-5.0 mm
• Mesh opening sizes: 20-200 mm
• Standard mesh opening angle: 60° (custom angles available)
• Connection method: Ferrule or knotted
• Certification: EN1263-1 compliant for static and dynamic load capacity

Stainless steel cable mesh is primarily used in construction for wild zoos, large animal enclosures, aviaries, garden green walls, and as handrail infill or safety mesh. The ferrule type offers superior aesthetic appeal and is ideal for architectural applications requiring both decorative and protective functions.

• High tensile strength with light weight
• Environmentally safe and natural appearance
• Excellent weather and corrosion resistance
• High transparency with good invisible effect
• Large mesh span suitable for extensive surface installations
• Durable structure with over 30 years service life
• Flexible design options for various graphics and structures
• Easy installation on any supporting structure

Standard Packaging: Rope mesh without frame is packed in rolls with protective plastic film, then placed in wooden cases. Framed rope mesh is securely fastened on pallets for safe transportation.
